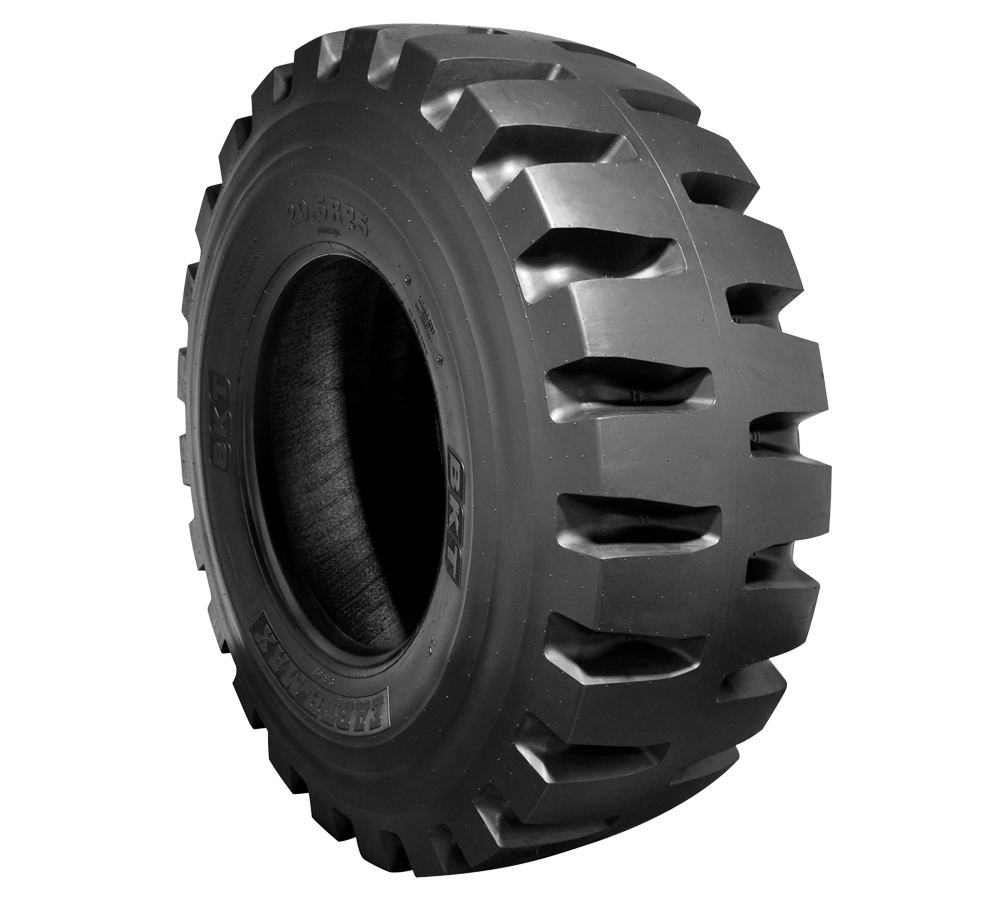

17.5R25 BKT EARTHMAX SR 53 176A2 L-5 TL

Description

The EARTHMAX SR 53 range of all-steel radial earthmover tyres have been designed for loaders, dozers and dump trucks working in underground and waste management or scrap yard applications. The extra-deep L-5 tread pattern provides maximum traction properties for operating on rocky conditions and at the same times offers good stone-ejecting ability, whilst the large contact surface provides for stability in operation. An extremely robust casing offers durability in service and a cut-resistant compound helps to increase the tyre's life cycle.

Features

  • Range of L-5 radial earthmover tyres for loaders and dozers working in mines and waste management environments.
  • Extra-deep tread and robust casing.
  • Good traction and self-cleaning properties.
  • Cut-and-chip resistant compound to increase tyre life-cycle.

Specification

Application
EARTHMOVER
Size
17.5R25
Brand
BKT
Pattern
EARTHMAX SR 53
Load/Speed Index
176A2
TT/TL
TL
Construction
RADIAL
Nominal Section Width
17.5
Rim
25
TRA
L-5
Star Rating
*
Recommended Rim
14.00/1.5
Permitted Rim
14.00LR/1.5 13.00LR/1.41
Section Width
435 mm
Overall Diameter
1400 mm
Static Load Radius
637 mm
Rolling Circumference
4214 mm
Tread Depth
66.00 mm
Max Load (KG)/Speed (KM/H) 1
7100/10
Inflation Pressure Bar
5.00
Specification 1
CUT RESISTANT COMPOUND
Specification 2
ALL STEEL
Warranty
5 YEARS
